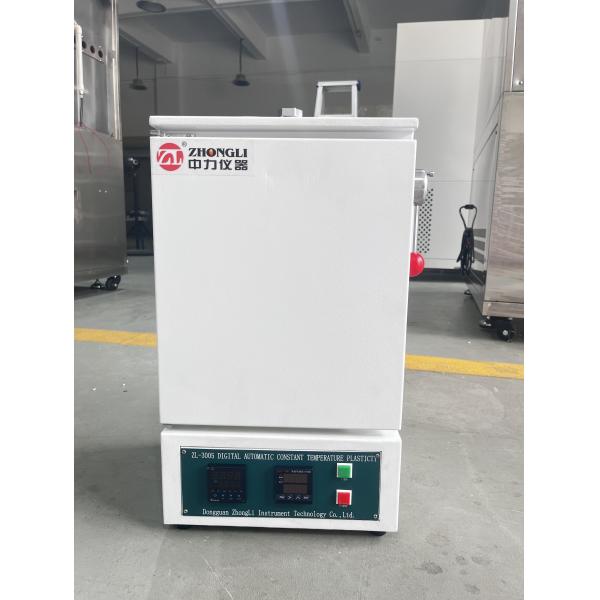

ISO 7323 Rubber-Weiss Plasticity Testing Machine

Brand Name : ZL

Model Number : ZL-3005

Certification : CE,ISO

Place of Origin : CHINA

MOQ : 1 SET

Price : Negotiable

Payment Terms : L/C,T/T,Western Union

Supply Ability : 60 sets / month

Delivery Time : 4-7 work days

Packaging Details : ISO 7323 Rubber-Weiss Plasticity Testing Machine will be packaged within wooden case.

Product name : ISO 7323 Rubber-Weiss Plasticity Testing Machine

Measuring range : 0.01~25 mm

Accuracy : ±0.01 mm

Load : 49 N ± 0.05 N

Weight : 53 kg

Power : 220V， 5A

Control Temperature : 70±1°C

Timing Range : 3min (can be set arbitrarily)

Dial Indicator Measuring Range : 0mm--30mm

Dimensions : 360mm×280mm×570mm

Net Weight : 35kg

Contact Now

ISO 7323 Rubber-Weiss Plasticity Testing Machine

This precision testing machine is designed according to international standards to measure the plasticity value of raw rubber, plasticized rubber, mixed rubber, and rubber compounds. It compresses preheated samples between parallel plates under fixed load at specified temperatures and measures sample height under load conditions.

Download Technical Documentation (PDF)

Equipment Function

Determines Williams plasticity of raw rubber, mastic rubber, and mixed rubber compounds. Features advanced temperature control with digital display (0-100°C settable range) and integrated three-minute timing alarm for enhanced measurement accuracy.

Key Features

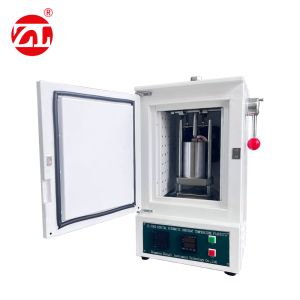

Weight assembly and working platform installed within constant temperature chamber
Lever-controlled cam mechanism for precise weight positioning
Dial indicator mounted on top bracket for deformation measurement
Digital temperature display regulator with platinum thermal resistance
Integrated timing circuit with automatic reset and weight lifting
Compact design with high reliability and low power consumption

Compliance Standards

Meets requirements of GB/T 12828 "Determination of plasticity and recovery value of raw rubber and mixed rubber" and other international standards.

Application Industries

Suitable for rubber manufacturing, tire production, and reclaimed rubber manufacturers.

Technical Specifications

Parameter	Specification
Pressure Between Parallel Plates	49N ± 0.05N (including dial indicator spring force)
Control Temperature	70 ± 1°C (arbitrarily settable within 100°C range)
Timing Range	3 minutes (arbitrarily settable)
Dial Indicator Measuring Range	0mm - 30mm
Dial Indicator Accuracy	0.01mm
Electrical Specifications	220V 50Hz 700W
Dimensions	360mm * 280mm * 570mm
Net Weight	35kg
